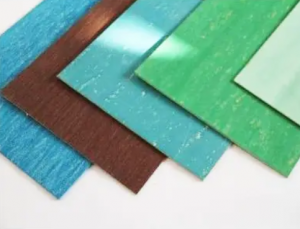

Asbestos emulsion sheet
Code : WB-WF3916
Short Description:
Specification: Description:It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200℃ CONSTRUCTION: WB-WF3916V Vulcanized Asbestos beat sheet It has smooth face and high density compared with Style 400 APPLICATION & PARAMETER: Gasket materials for explosion engine cylinder gaskets and chemical gaskets Suitable to sealing lubricating ...
Product Detail
Product Tags
Specification:
Description:It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200℃
CONSTRUCTION:
WB-WF3916V Vulcanized Asbestos beat sheet
It has smooth face and high density compared with Style 400
APPLICATION & PARAMETER:
Gasket materials for explosion engine cylinder gaskets and chemical gaskets
Suitable to sealing lubricating oil at highest temperature 200℃
|
Item |
Style |
||
|
3916A |
3916B |
||
| Density g/cm3 |
0.9~1.1 |
1.2~1.4 |
|
| Tensile strength ≥Mpa |
2.5 |
5 |
|
| Compressibility ≥% |
40±7 |
20±5 |
|
| Recovery ≥% |
20 |
40 |
|
| Stress relaxation ≤% |
30 |
30 |
|
| In 20# aviation oil,150℃, 30min | Oil absorption |
≤50% |
≤30% |
| Thick. increase |
≤6% |
≤12% |
|
| In water15~30℃, 5h | Thick. increase |
≤6% |
≤12% |
Normal color: Grey, Black, White, other color on request
Also available with anti-stick or graphite coating
TOLERANCE:
|
Item |
Tolerance |
In same sheet |
|
Thickness |
±mm |
mm |
|
0.5 |
0.05 |
0.06 |
|
0.6-0.8 |
0.06 |
0.08 |
|
1-2 |
0.08 |
0.08 |
DIMENSIONS:
Width: 500mm; 1000mm
Length: 500mm; 1000mm; 1200; 1500mm
Thickness: 0.3~2.0mm
