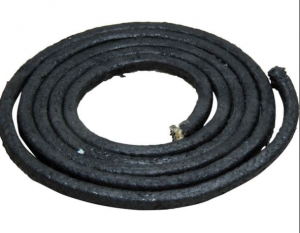

Cotton Packing with Graphite & oil
Code : WB-602G
Short Description:
Specification: Description:Cotton Packing with Graphite & oil:Pre-impregnated cotton yarns treated with graphite, then thoroughly re-impregnated during braiding. The packing is resilient and flexible CONSTRUCTION: WB-602P Cotton Packing with PTFE Impregnation Made of long cotton fiber yarn impregnated with PTFE and additives. The packing has a low coefficient of friction & is resilient and flexible.（PH：4~10） APPLICATION: Universal packing, for Rotary, reciprocating pumps, in ship ...
Product Detail
Product Tags
Specification:
Description:Cotton Packing with Graphite & oil:Pre-impregnated cotton yarns treated with graphite, then thoroughly re-impregnated during braiding. The packing is resilient and flexible
CONSTRUCTION:
WB-602P Cotton Packing with PTFE Impregnation
Made of long cotton fiber yarn impregnated with PTFE and additives. The packing has a low coefficient of friction & is resilient and flexible.（PH：4~10）
APPLICATION:
Universal packing, for Rotary, reciprocating pumps, in ship building and domestic fresh water pumps.
Style 602P is designed for hydraulic applications in low and medium pressure pumps and valves, and where contamination is not permitted.
PARAMETER:
|
Density |
1.25g/cm3 |
|
|
PH range |
6~8 |
|
|
Maximum Temperature °C |
130 |
|
|
Pressure bar |
Rotating |
10 |
|
Reciprocating |
20 |
|
|
Static |
70 |
|
|
Shaft speed |
m/s |
10 |
PACKAGING:
in coils of 5 or 10 kg, other package on request.
